Key Takeaways
- Springback varies dramatically by material; stainless steel exhibits 5°-7° while copper alloys require minimal compensation, making material verification critical for consistent results.
- Modern all-electric CNC benders achieve ±0.05° to ±0.15° angular tolerances through closed-loop compensation, but only when combined with optimized tooling (ball mandrels, wiper dies) and FEA prediction.
- Tight-radius bends (CLR < 2D) cause 15-25% wall thinning and 3-8% ovality, boost pressure control, and mandrel selection (~0.009″ clearance) are essential for maintaining structural integrity.
- Advanced springback compensation reduces scrap from 10% to <2%, the higher capital cost of all-electric CNCs ($150k-500k+) pays for itself through waste elimination and access to high-margin aerospace contracts.
- In-process monitoring prevents defects proactively, real-time angle measurement with automatic adjustment eliminates the 15-30% labor waste from manual rework and trial-and-error.

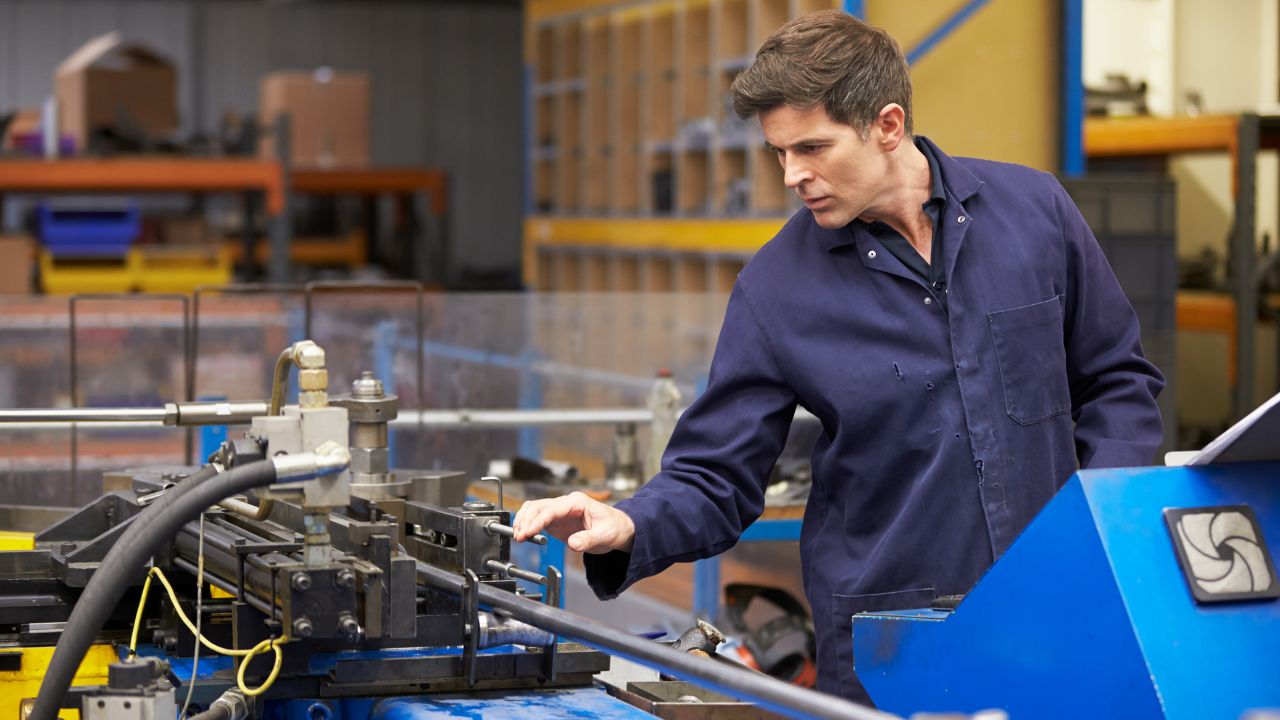

Tube bending springback is the single greatest challenge in precision tube fabrication. It determines whether your parts meet ±0.05° angular tolerances or become scrap. Modern all-electric CNC tube bending systems can compensate automatically, but only when operators understand the physics, material behavior, and tooling adjustments that control elastic recovery.
This guide provides actionable springback compensation strategies for achieving consistent, first-pass quality.
What Is Springback In Tube Bending?
Springback is the geometric change that occurs when bending forces are released and the material undergoes elastic recovery. During tube bending, the extrados (outer surface) experiences tensile stress while the intrados (inner surface) undergoes compression. Both elastic and plastic deformation occur simultaneously. When tooling is removed, elastic stresses are relieved, the bend angle opens up and the radius increases.
The magnitude varies dramatically by material. Stainless steel (304, 316) exhibits 5°-7° springback due to high work-hardening rates. Mild steel shows moderate springback that increases with yield strength. Modern all-electric CNC benders used in precision custom pipe bending achieve ±0.05° to ±0.15° angular tolerances, but only with precise compensation algorithms and closed-loop feedback systems that ensure CNC tube bending quality.
What Factors Influence Springback Magnitude?
Material properties are the primary driver. High yield strength and modulus of elasticity produce greater springback. Batch-to-batch variations cause unpredictable behavior even with compensation algorithms, verify mill certificates for every material lot to prevent tube bending defects.
Material Springback Characteristics
| Material Type | Springback Behavior | Key Compensation Approach |
| Stainless Steel (304, 316) | High work-hardening; 5°-7° springback | Closed-loop CNC with precise overbending |
| Steel (Mild, HSLA) | Moderate; increases with yield strength | Standard overbending; verify material certificates |
| Aluminum (6061-T6) | Brittle; requires large radii (3-6x thickness) | Large CLR ratios; possible annealing |
| Aluminum (3003-O) | Very ductile; minimal springback | Simple compensation factors |
| Copper Alloys (DHP) | Highly ductile; allows 1.5D radii | Fixed overbend settings sufficient |
Critical Geometric Factors:
- Bend Radius (CLR): Tighter bends (CLR < 2D) induce more strain and springback; cause 15-25% wall thinning and 3-8% ovality
- D/t Ratio: High D/t (thin-walled) tubes are prone to unpredictable springback and require mandrel support (~0.009″ clearance)
- Bend Angle: Greater angles (>90°) result in more total springback
- Wall Thickness: Thicker walls exhibit less springback for a given diameter
How Is Springback Compensated For?
Effective springback compensation requires multiple techniques working together. No single method eliminates springback, successful manufacturing services layer mechanical, software, and process controls.
Primary Compensation Techniques
- Overbending (Universal Method)
Bend past target angle to allow spring-back to desired geometry. Modern CNCs automatically calculate based on material data. Achieves ±0.05° to ±0.15° on all-electric benders with closed-loop systems.
- Advanced Tooling Solutions
- Mandrel Selection: Ball mandrels with ~0.009″ clearance control material flow in thin-walled tubes (high D/t) and tight-radius bends
- Wiper Die Usage: Prevents wrinkles on tight-radius bends (CLR < 2D); requires optimized material, clearance, and rake angle
- Boost Pressure Control: Axial force reduces wall thinning from 25% to <15%; compensates intrados compression
- Software Prediction (FEA)
Simulates elastic and plastic deformation before production. Essential for complex multi-bend parts and high-springback materials (stainless steel). Requires accurate material property data from tensile tests and verified mill certificates. Feeds predictions into automatic CNC overbending calculations during product development.
Process Optimization Parameters
Critical Process Parameters:
- Bending Speed: Maintain consistency for ±0.05° to ±0.15° angular repeatability; affects work-hardening rate
- Boost Pressure: Calibrate based on CLR/D ratio; increase for tight-radius bends
- Temperature: Room temperature standard; annealing required for brittle 6061-T6 aluminum; controlled cooling manages residual stresses
- Lubrication: Prevents galling; critical for material flow consistency
Advanced Techniques
- Multi-Stage Bending: Prevents cumulative positional error expansion from ±0.15 mm to ±0.30 mm in complex geometries
- Closed-Loop CNC Compensation: Real-time angle measurement with automatic adjustment eliminates manual trial-and-error
- Material Verification: Check mill certificates for each batch to ensure consistent springback behavior
Operator Expertise Impact:
Skilled operators recognize material behavior differences between batches, adjust tooling (mandrel clearance, wiper die rake) based on visual inspection, maintain bend radius consistency of ±0.10 to ±0.25 mm, and quickly identify galling, wrinkles, or excessive wall thinning before producing scrap runs.
Measuring And Testing For Springback
Accurate measurement validates compensation effectiveness and prevents defects from reaching assembly. The inspection method must match production volume, part complexity, and tolerance requirements, over-inspection wastes resources while under-inspection risks customer rejections.
Inspection Method Selection Guide
| Method | Best Application | Key Advantage | Typical Accuracy |
| CMM (Coordinate Measuring Machine) | First-Article Inspection (FAI); process capability studies (Cpk) | High accuracy variable data; essential for qualification | ±0.15-0.30 mm positional; ±0.05-0.15° angular |
| Laser Scanning & Vision Systems | Complex shapes; 100% inspection in automated cells | Extremely fast; millions of data points; full 3D profile | ±0.10-0.25 mm resolution |
| Go/No-Go Fixtures | High-volume in-process checks | Quick pass/fail verification; low cost; operator-friendly | Pass/fail at design tolerance |
| In-Process Monitoring | Real-time quality control | Closed-loop compensation; prevents defects before occurrence | ±0.05-0.15° real-time angle |
Real-Time Testing Techniques
- Angle Monitoring: Integrated sensors enable closed-loop automatic overbending adjustment
- Torque Monitoring: Detects material hardness variations and tooling wear affecting springback
- Statistical Process Control (SPC): Control charts detect tolerance drift from tool wear, temperature changes, and calibration drift before parts go out of spec
Economic Impact Of Springback Compensation
Poor springback control destroys margins through scrap, rework, and lost contracts. Understanding cost drivers enables strategic investment in compensation technology that pays for itself through waste reduction and access to premium markets.
Cost Drivers
- Material Waste: 2-10% scrap in high-springback materials (stainless) without compensation
- Labor: 15-30% setup time increase for complex geometries without FEA prediction
- Tooling: Ball mandrels cost 5-10x basic tooling; wiper die optimization requires iterations
- Advanced Machines: All-electric CNC benders ($150k-500k+) cost 2-3x hydraulic CNCs but achieve ±0.05-0.15° tolerances
- Inspection: CMM ($50k-300k), laser systems ($75k-250k) scaled to production volume
- Downtime: 5-15% in operations without SPC monitoring
Profitability Improvement
- Yield Gains: Reducing defects from 10% to <2% through closed-loop compensation dramatically increases sellable parts
- Rework Elimination: Consistent ±0.05° to ±0.15° angular tolerances eliminate 15-30% labor cost increase from manual correction
- Competitive Advantage: Meeting tight aerospace tolerances (±0.20 mm positional for fuel lines) opens higher-margin contracts
- Customer Retention: Bend radius consistency (±0.10 to ±0.25 mm) without tolerance drift builds trust and repeat business
Managing Springback For Precision And Profitability
The challenge of managing springback in tube bending is critical to achieving precision and profitability in tube fabrication. Springback behavior, which varies by material and geometry, can be effectively controlled through a multi-layered compensation approach. High-strength materials like stainless steel and tight-radius bends require advanced techniques such as overbending, optimized tooling, and closed-loop CNC systems, with the support of FEA predictions. Measurement tools such as CMMs and laser scanners ensure the required tolerances are met, while real-time in-process monitoring proactively eliminates defects. Investment in advanced systems, though costly, significantly reduces waste and labor costs, improving both yield and profitability.
Manufacturers who master material behavior, invest in the right technology, and implement an integrated approach can meet stringent aerospace-grade tolerances and secure higher-margin contracts, making springback compensation an essential factor for success in precision tube bending.
Need precision custom tube assemblies and tube fabrication that meets your tightest tolerances? Contact CRD Manufacturing to discuss how our advanced compensation techniques and American craftsmanship deliver first-pass quality.
